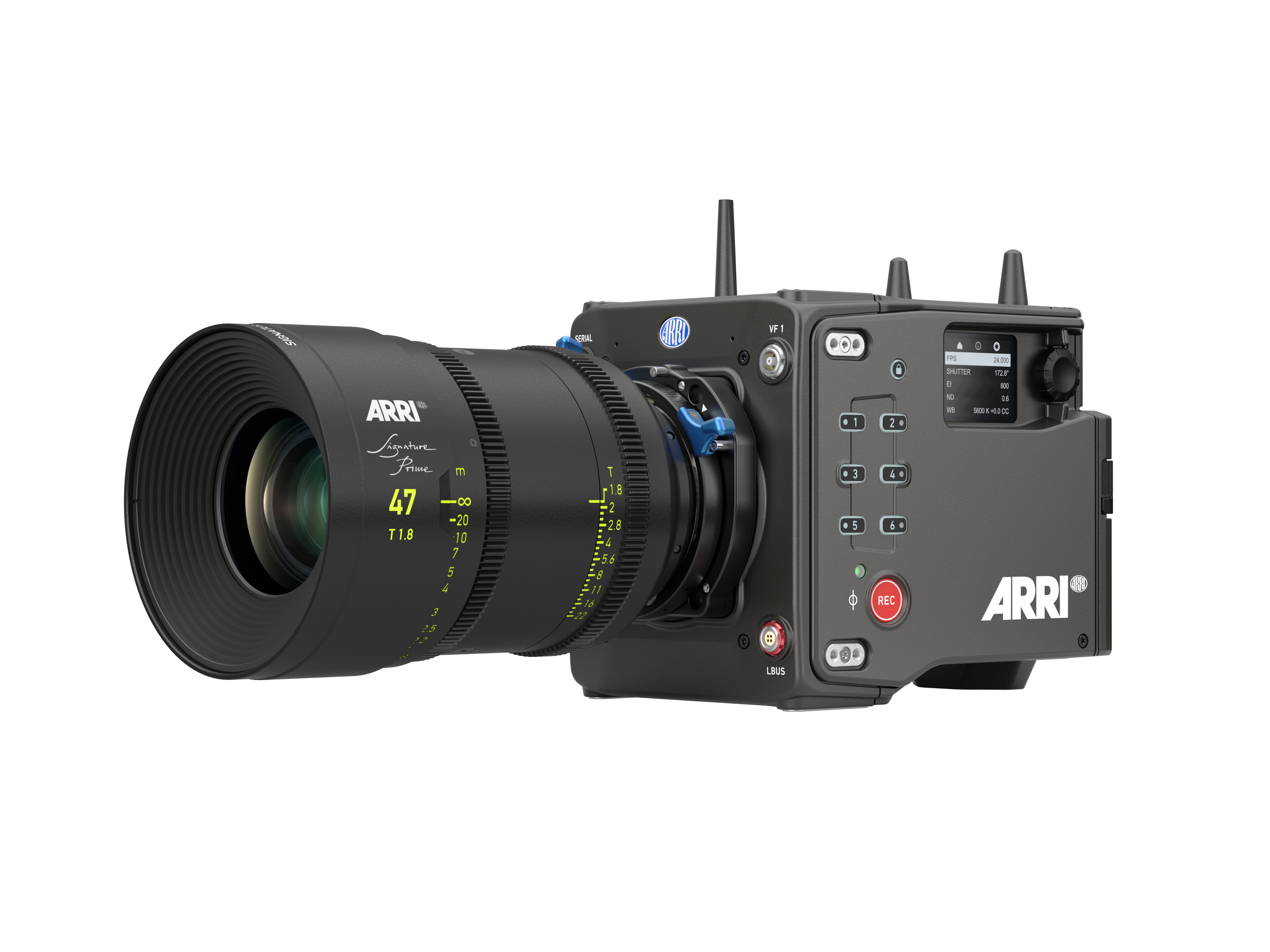

ARRI ALEXA 35
ALEXA 35 is a 4K Super 35 camera that elevates digital cinematography to unprecedented heights. ARRI's first new sensor for 12 years builds on the evolution of the ALEXA family over that period, delivering 2.5 stops more dynamic range, film-like highlight handling, better low light performance, and richer colors.
The new REVEAL Color Science takes full advantage of the sensor's image quality and provides a fast, simple workflow, while ARRI Textures enhance in-camera creative control. Easy operation, robust build quality, new electronic accessories, and a complete new mechanical support system round out the ALEXA 35 platform.

ARRI ALEXA 35

  • Technnical

    Sensor Type Super 35 format ARRI ALEV 4 CMOS sensor with Bayer pattern color filter array
    Sensor Maximum Number of
    Photosites and Size    		 4608 x 3164
    27.99 x 19.22 mm / 1.102x 0.757″
    Ø 33.96 mm / 1.337″
    Sensor Frame Rates 0.75 – 120 fps
    Weight ∼2.9 kg / 6.4 lbs (camera body with three antennas and LPL Mount (LBUS))
    Photosite Pitch 6.075 μm
    Exposure Latitude 17 stops
    Exposure Index Adjustable from EI 160 – 6400 in 1/3 stops
    Shutter Electronic shutter, 5.0°- 356° or 1s – 1/8000s
    Recording Formats MXF/ARRIRAW
    MXF/Apple ProRes 4444 XQ
    MXF/Apple ProRes 4444
    MXF/Apple ProRes 422 HQ
    Recording Media Codex Compact Drive 1TB (CA08-1024)
    Codex Compact Drive 2TB (CB16-2048)
    ViewFinder Type Multi Viewfinder MVF-2 with 4″ flip-out monitor
    Color Output Rec 709
    Rec 2020
    Rec 2100 PQ
    Rec 2100 HLG
    LogC4
    Custom Look (ARRI Look File ALF-4)
    Look Control Import of custom 3D LUT
    ASC CDL parameters (slope, offset, power, saturation)
    ARRI Look Library
    ARRI Textures
    White Balance Manual and auto white balance, adjustable from 2000K to 11000K in 10K steps
    Color correction adjustable range from -16 to +16 CC
    1 CC corresponds to 035 Kodak CC values or 1/8 Rosco values
    Filters Four position built-in motorized ND filter: Clear, 0.6, 1.2, 1.8
    Fixed optical low pass, UV, IR filter
